VIRGINIA COAST RESERVE LONG-TERM ECOLOGICAL RESEARCH

Site OYSM, Month MAY, Year 2016

Next Previous
VCR/LTER Meteorological Data
VCR/LTER Data
VCR/LTER Home Page
Contact jhp7e with problems and questions
Day of MonthPrecip (mm)Max Temp. oCMin Temp. oCMean Temp. oC Wind Speed (m/s)Wind Dir (deg.)Vapor Press. (mb) Solar Rad. KJ/m2PAR mMoles/m2
1 0.00 17 12 14.3 1.76108 17.25 7503 15191
2 0.76 28 15 20.6 1.79215 18.40 21980 41459
3 1.27 22 13 18.3 1.66285 16.14 10444 20253
4 0.25 15 11 13.0 2.94325 14.13 8408 14602
5 0.00 12 10 10.7 4.18 19 13.62 6905 12086
6 0.25 13 9 10.8 1.00189 13.43 10831 19458
7 0.00 18 10 14.2 1.47159 14.24 22503 40221
8 0.00 22 13 17.2 2.07273 16.66 22297 40367
9 2.03 20 10 15.6 1.05100 17.09 19820 37825
10 1.52 17 13 15.0 1.81 62 16.57 13263 26139
11 0.00 20 14 16.0 1.43 91 16.61 12429 23336
12 0.00 19 14 16.6 1.25 55 16.22 15368 28875
13 0.00 23 15 18.5 1.62200 17.51 9194 17994
14 7.87 26 13 18.6 1.72243 17.06 27007 49971
15 44.70 17 10 13.7 3.36256 . 28416 52560
16 15.24 19 6 14.0 1.64232 21.78 27877 53683
17 3.56 19 14 16.1 0.92247 20.35 5666 11773
18 4.06 16 12 13.7 2.95 39 16.94 11464 22817
19 0.00 18 10 14.2 1.47 11 16.40 17775 34760
20 0.00 21 8 15.7 1.22 71 17.07 26315 49046
21 0.00 19 15 16.8 2.88 37 16.95 6361 12425
22 0.00 16 14 14.6 2.82257 15.79 9084 16931
23 0.00 18 13 14.8 2.33 15 14.93 10951 20277
24 0.00 27 14 19.6 1.56296 17.12 27254 50388
25 0.25 29 18 22.7 1.26217 19.96 27569 52208
26 0.25 27 19 23.3 2.32206 21.23 26911 52069
27 0.00 27 21 23.2 3.16197 22.65 25592 52568
28 0.25 26 18 22.0 1.84160 21.16 28845 56540
29 0.00 25 19 22.8 1.89149 20.47 13839 29263
30 0.00 23 20 21.8 1.45166 17.28 7089 14963
31 0.00 25 19 21.9 1.04 56 15.41 20989 41509

Monthly Summary: Site OYSM, Month MAY, Year 2016

Mon. Tot. Precip. 82.3 mm Mean wind vel. 1.931 m/s
Mon. Mean Temp. 17.1 deg. C Wind dir 211 deg
Mean Max. Temp. 20.8 deg. C Mean Min. Temp. 13.7 deg. C
Extreme Max. Temp 29.0 deg. C Mean vapor press 17.35 mb
Extreme Min. Temp 6.4 deg. C Total Solar Rad 529948 KJ/sq. m
Total photosyn. 1011558 mMoles/sq.m

Graphics

PPTgraph
Daily Total Precipitation (mm)
Top
TEMPgraph
Hourly Mean Temperatures (deg. C)
Top
TEMP1graph
Hourly Max Min and Mean Temperatures (deg. C)
Top

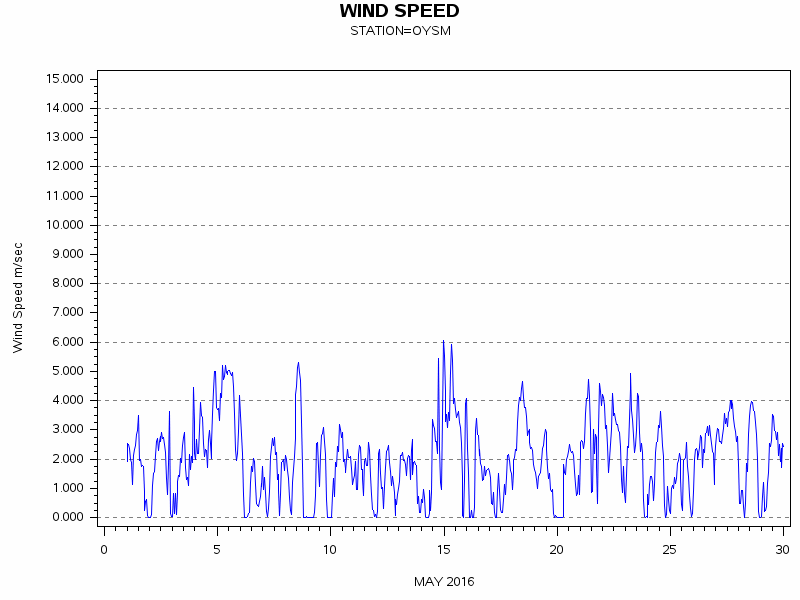

WINDSgraph
Wind Speed (m/s)
Top
WINDDgraph
Frequency of Wind Direction
Top

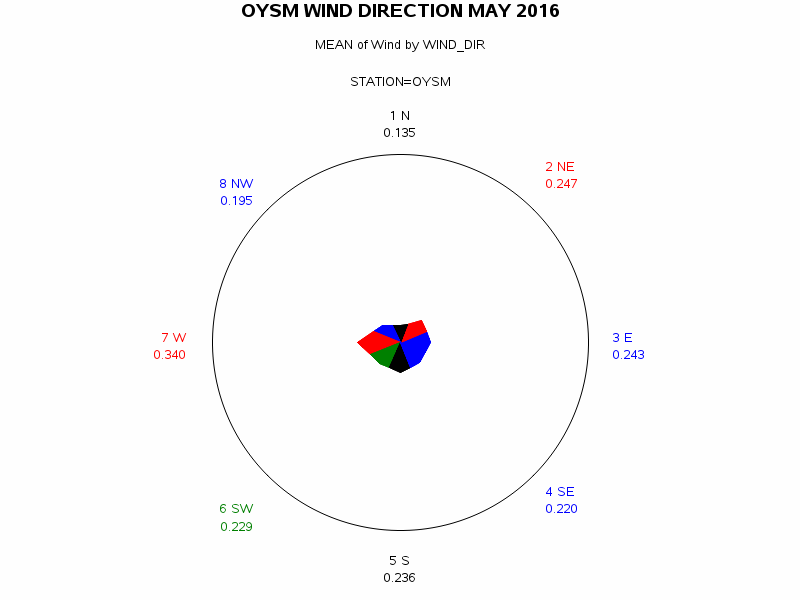

STARgraph
Wind Vectors (circle=1.5 m/s)
Top

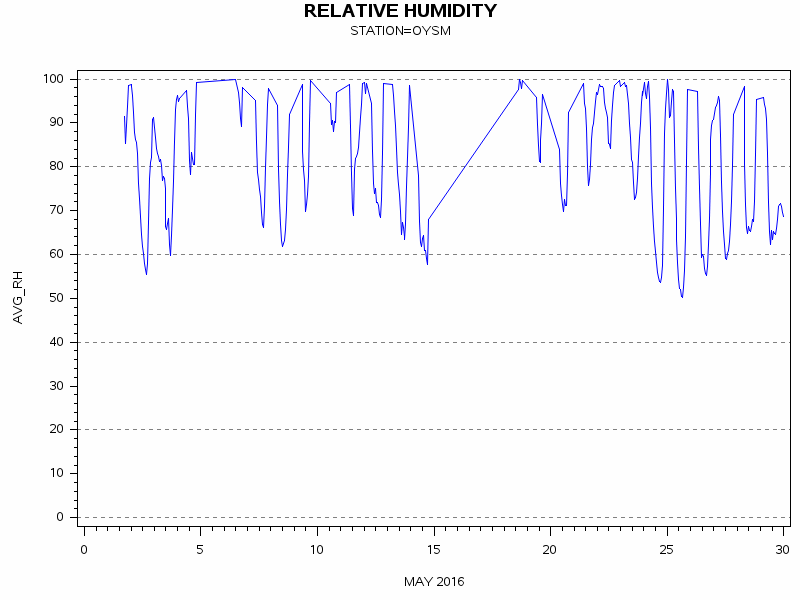

RHgraph
Relative Humidity (percent)
Top

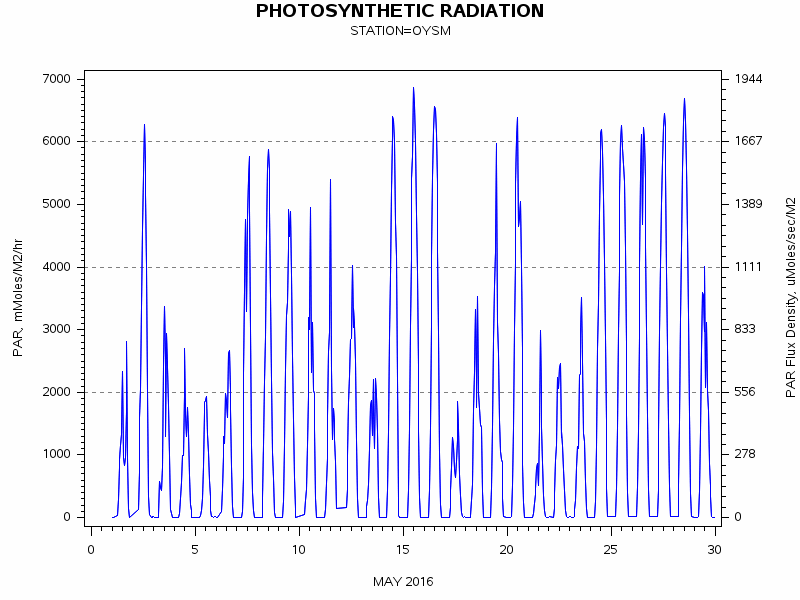

PARgraph
Photosynthetically Active Radiation (milli-moles per m squared)
Top

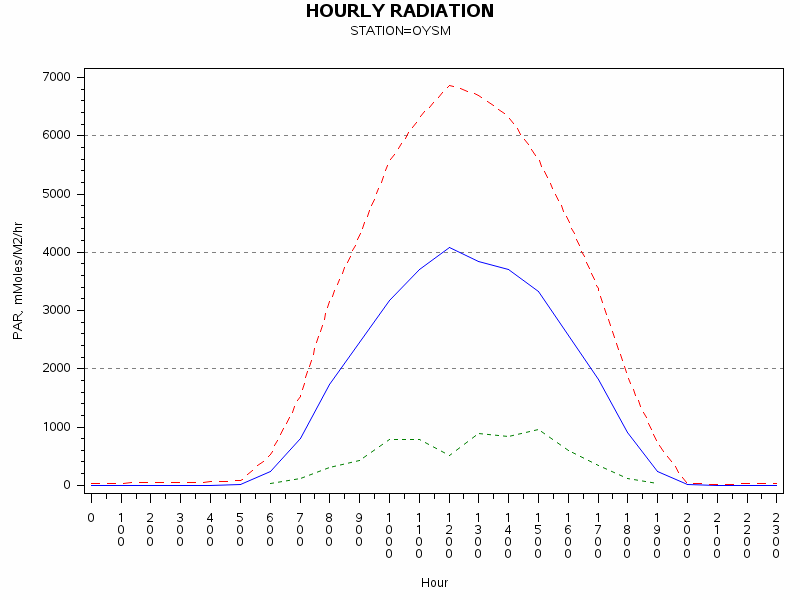

PARgraph
Hourly Photosynthetically Active Radiation (milliMoles per m squared)
Top

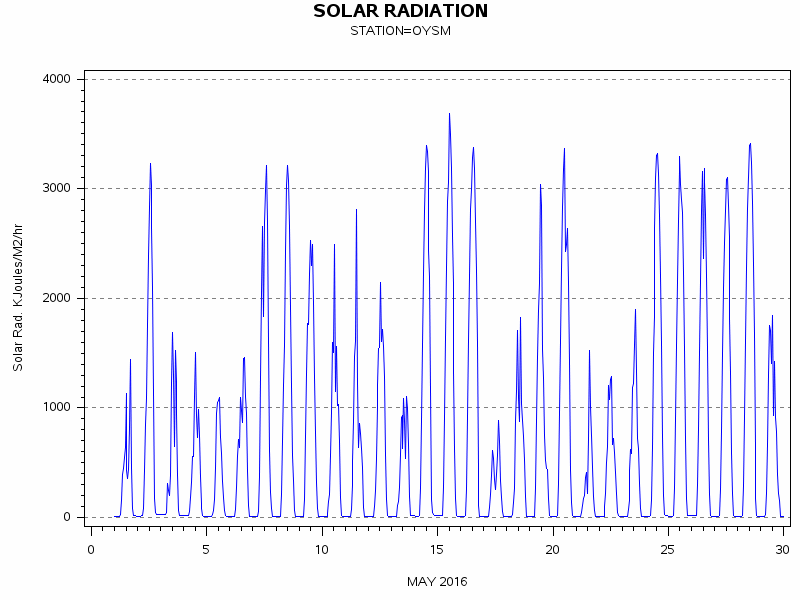

RSgraph
Solar Radiation (KiloJoules per Meter Squared)
Top
RS1graph
Hourly Solar Radiation (KiloJoules per Meter Squared)
Top
NHOURSgraph
Hours of Station Operation
Top

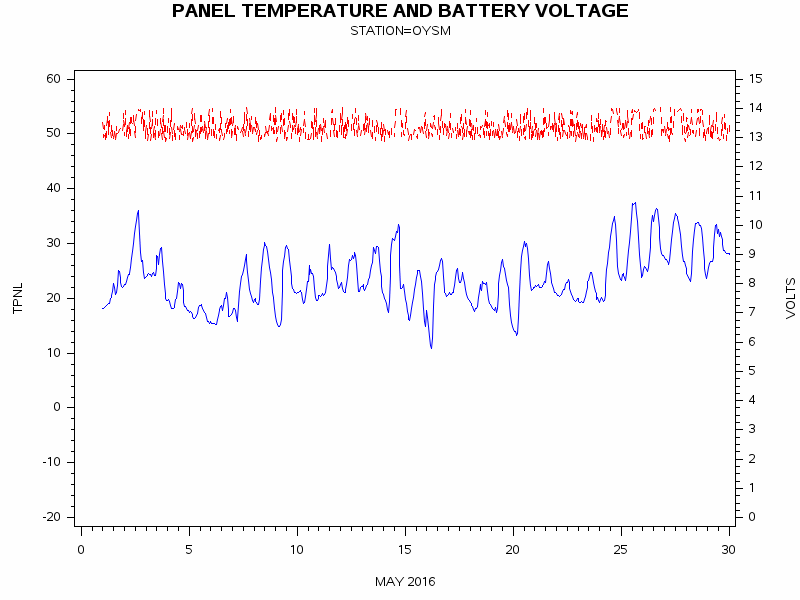

VOLTgraph
Data Logger Battery Voltage and Internal Logger Temperature
Top
